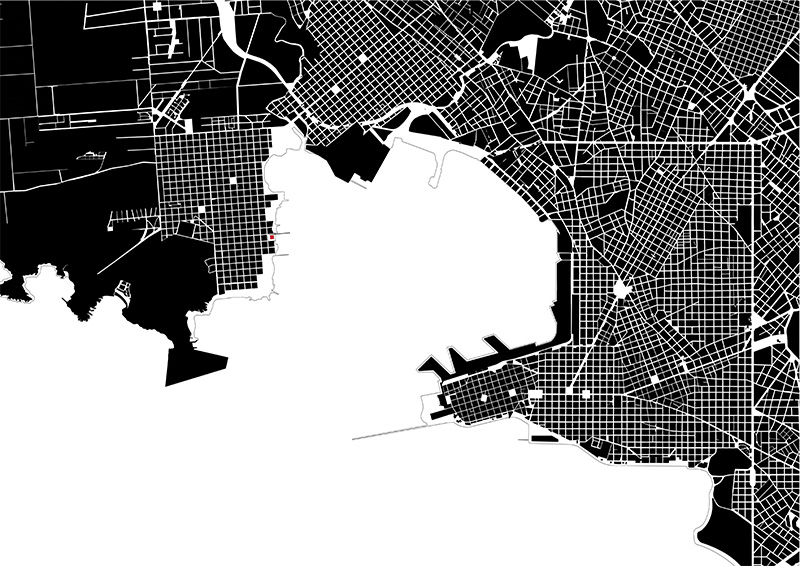

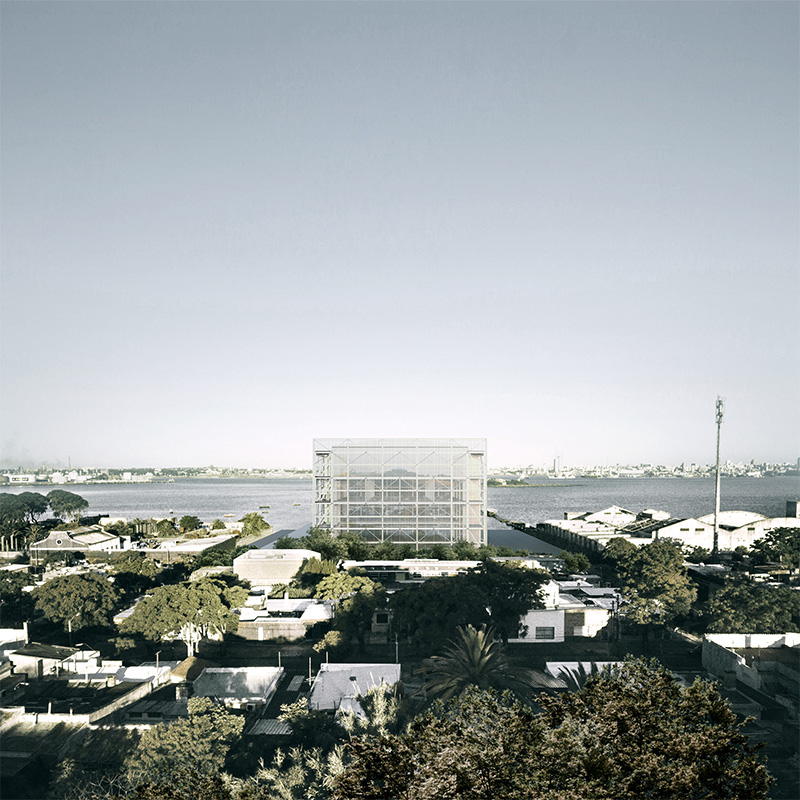

EMSD Cerro is located in the bay of Cerro de Montevideo, Uruguay, northeast of the current General Artigas Museum, a singular point in Montevideo landscape, which image identifies the city, and is registered in the iconography and in the local and national heraldry. To the east of the bay is the city center, which is 3.8km away from the sea.
Despite its symbolic-iconic condition, and the short distance that separates it from the center of the city, the Cerro de Montevideo is in a state of deterioration and abandonment. EMSD Cerro intends to put in tension the relationship between the center and the Cerro of the city through the coexistence of the territory and the architecture project.
In this sense, when approaching the architecture project, two maxims are presented: the first one dictates that the location of the building must be such that allows a transfer by sea from one side of the city to the other, and the second one, that the adopted program must be inexhaustible in order to be used by a diversity of users also inexhaustible.
The program is then defined as ‘multifunctional, sociocultural and sports building’, having to combine various activities/possibilities related to its location and its scale: S, M, L, XL. Among the programmatic possibilities, we list:
- classrooms
- work areas
- offices
- media library
- audiovisual rooms
- indoor sports area
- exhibition area
- recreation area
- public dock
- dry esplanade
- viewpoint
- social pole, etc.

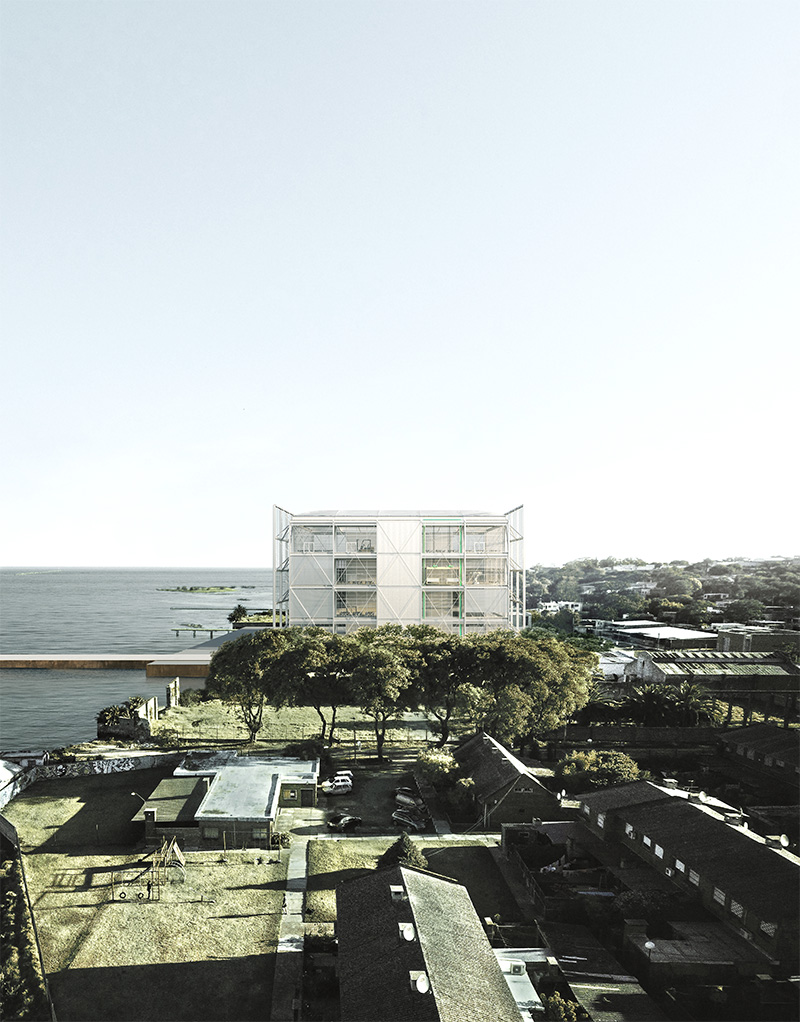

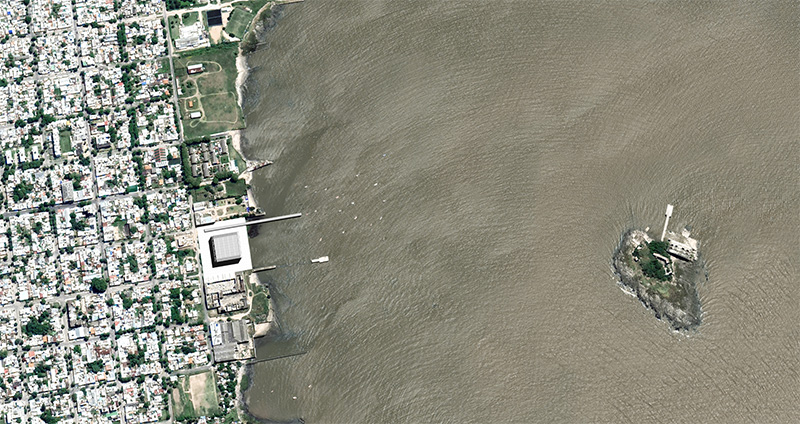

The implantation of the building on the bay of Cerro is resolved through an esplanade of square proportion (100x100m) where the building is located, allowing the surrounding environment to be perceived at all times.

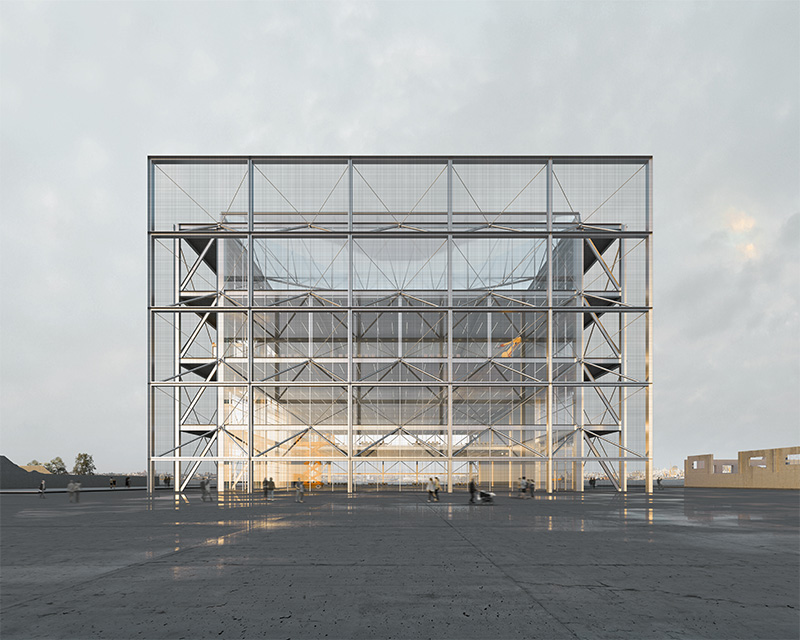

This prism is completely transparent in an east-west direction, allowing it to be visually traversed and facilitating access to the building through the glass enclosure, diaphanous by nature. This characteristic prioritizes the public condition of the ground floor and highlights the condition of the social pole of the building complex.
Finally, a public dock begins in the dry esplanade, being an artifact in itself and a possibility at the same time: the possibility of connecting the city by the sea.

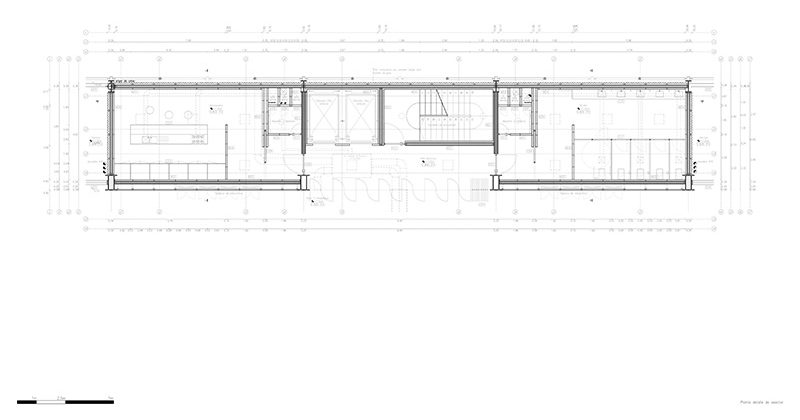

The organization of the building (in response to the conditions of the environment and the programmatic needs) is resolved in a prismatic volume of four floors. In its organizational logic, the nucleus is presented as a configurable void: a space capable of adopting different programs, and it’s north and south faces, which are transversal to the Bay, house the circulation and services of the building.
This organizational logic is followed by a structural logic: the supporting structure acts by freeing the center of the building and concentrating structural efforts through the north and south facades.

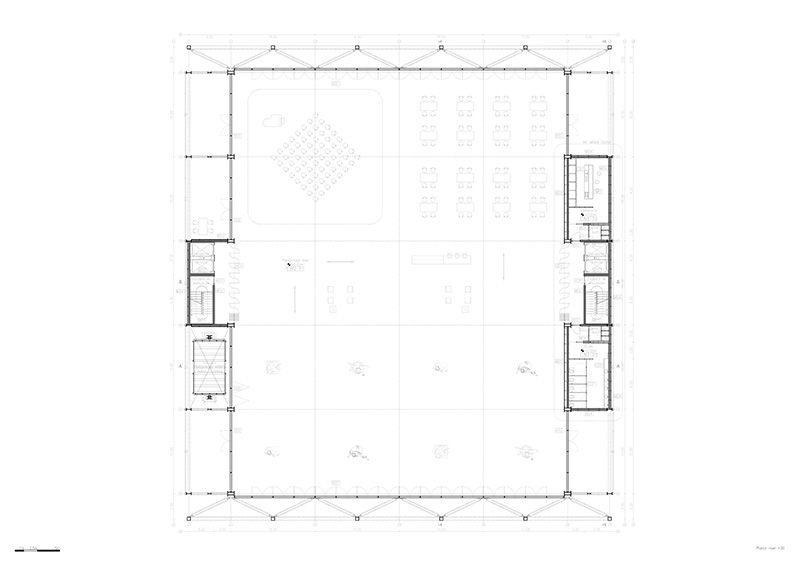

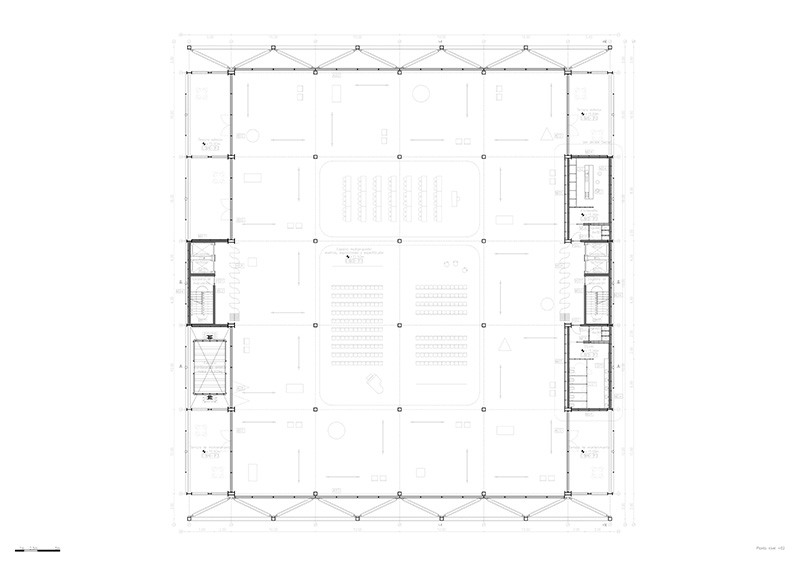

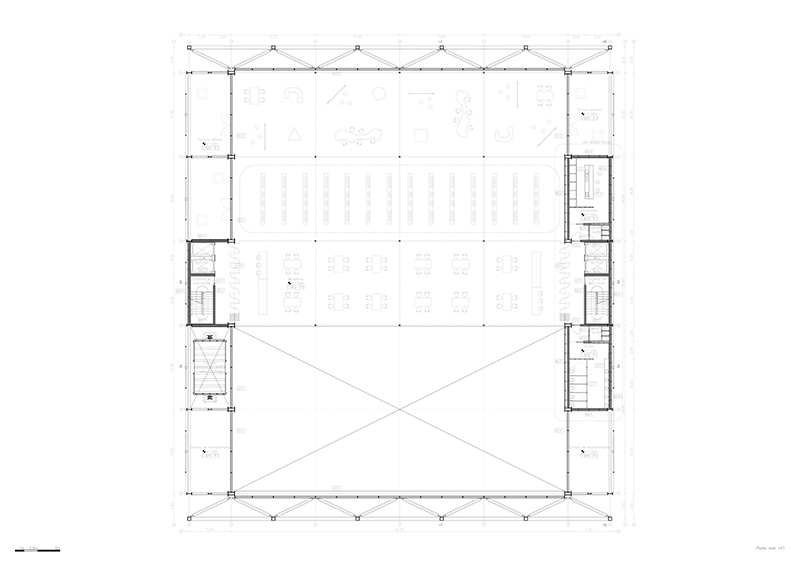

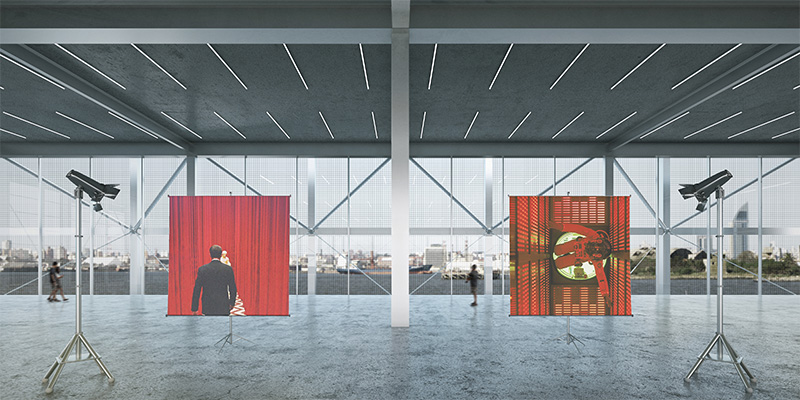

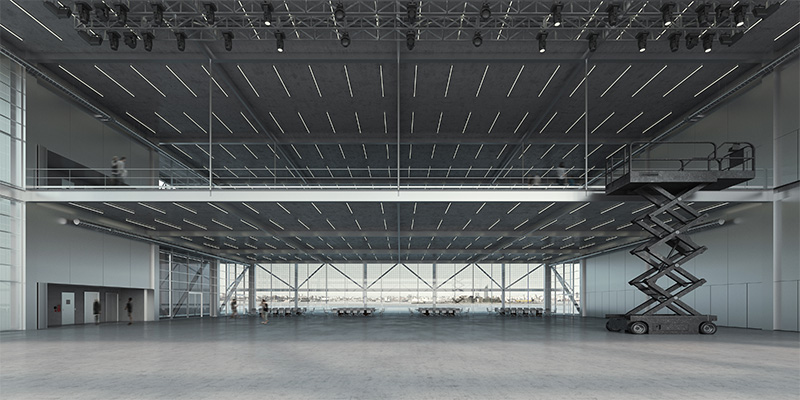

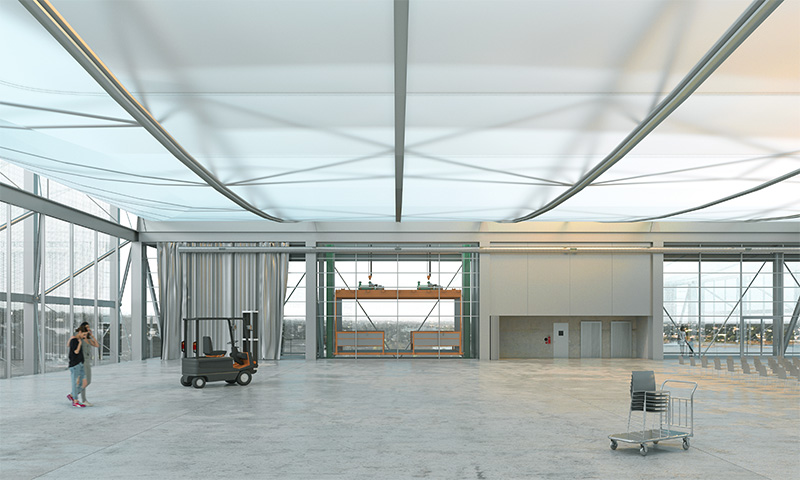

These four configurable spaces are possible through the structural development of the building. The interior ground floor is the continuity of the exterior esplanade, while the other levels acquire different configurations according to the structure of the building, and this allows each level to be different from the others, and therefore more or less convenient for the different configurations/possibilities.
The technological response to programmatic demands is the consequence of a rational search based on structural clarity and assembly efficiency.

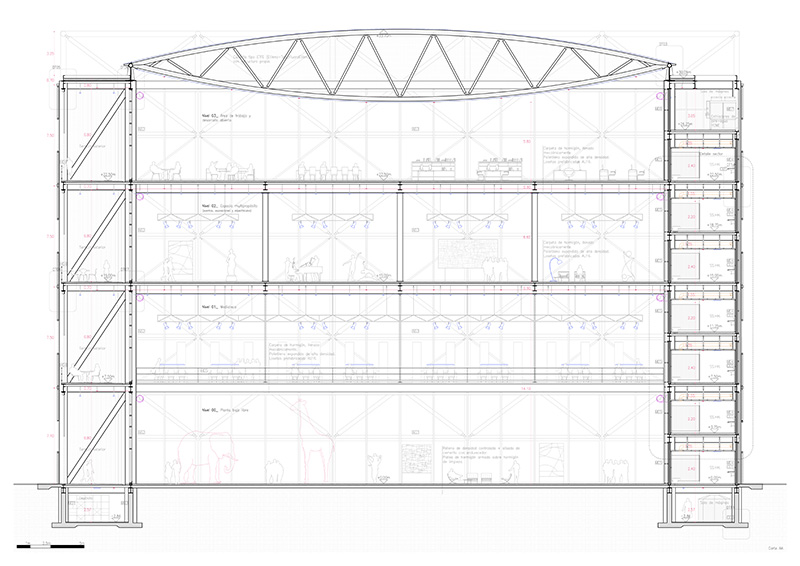

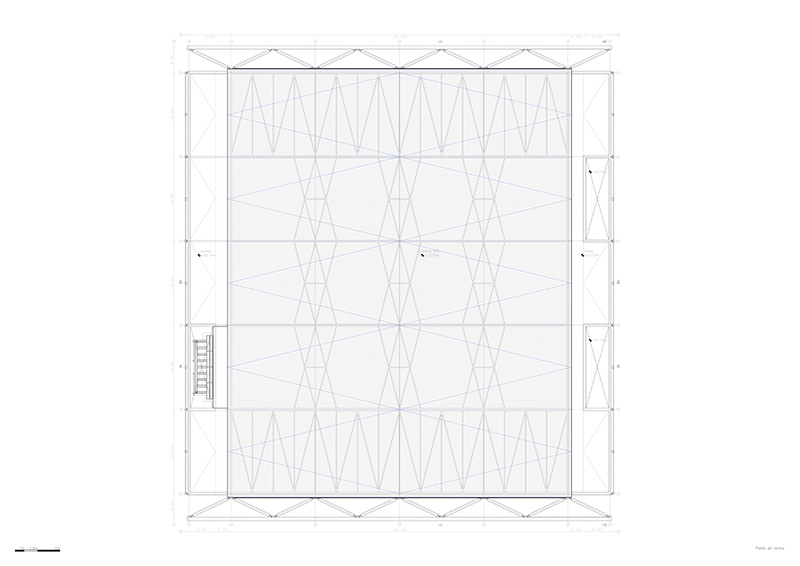

The structural scheme is resolved through a vertical support structure on the north and south faces of the building and a variable horizontal structural system.

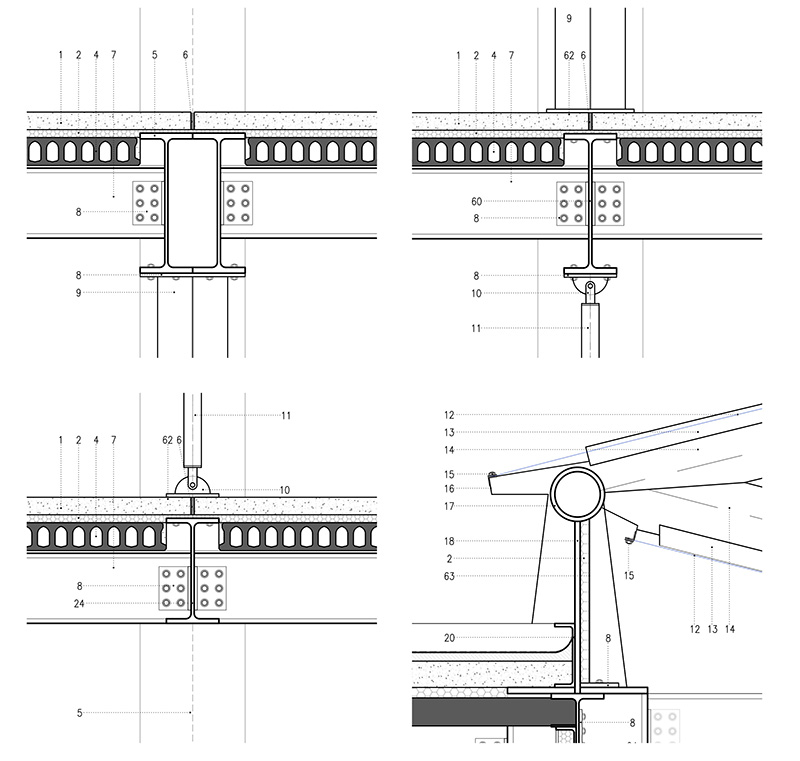

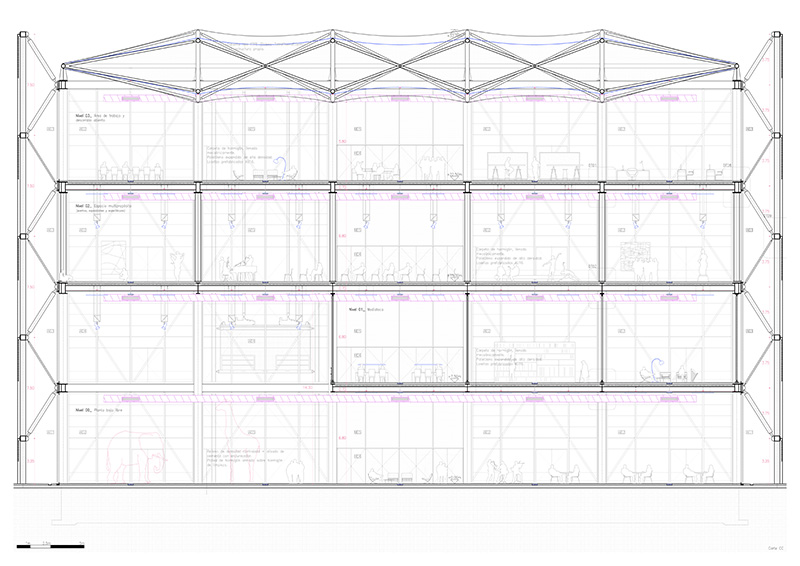

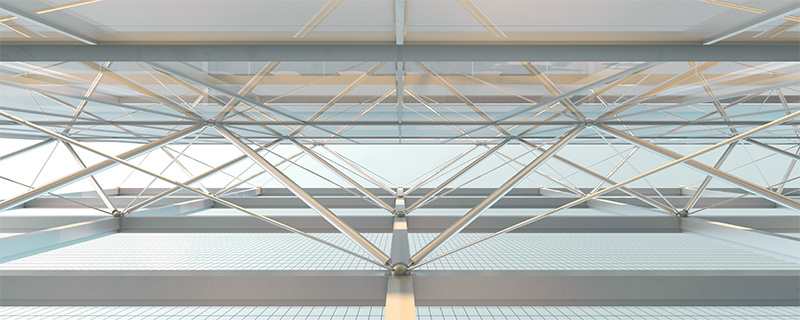

The vertical support structure is made up of steel profiles, which, braced together, form a homogeneous geometry of 5x50x30m. that allows the distribution of structural efforts towards the foundations. The variable horizontal structure is made up of six 7.5m vierendeel beams located every 10m. between them on level two of the building.
This allows supporting the slabs of the upper level and hanging the slabs of the lower level through cables, and consequently the ground floor and the upper floor are free floors.

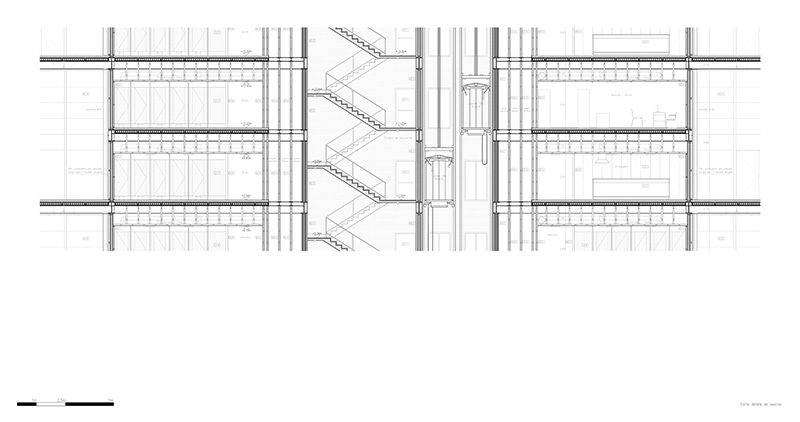

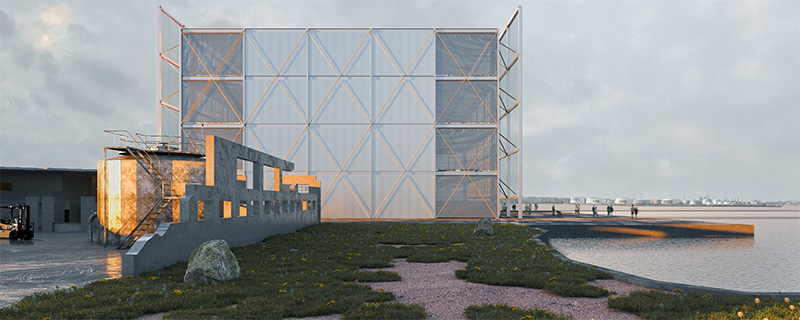

The assembly scheme is then verified with the structural scheme, generating opaque faces that house circulations and services (mostly on the south face, where there is less solar incidence) around the vertical support structure and glazed faces with metal skin protection in the east and west faces of the building.
